Hayward Bypass Valve Kit | HAXBPK1932 by Hayward

Hayward H Series Bypass Valve Kit HAXBPK1932 For Ed1 Ed2 Heaters

HaywardSKU: HPPHAXBPK1932
Price:
$114.08 USD

Shipping calculated at checkout

Stock:
In Stock

Shipping Information

At Duckies Pool Supply, we work hard to get your order to you quickly:


  • In-Stock Products: Ship within 24 hours of your order.

  • Out-of-Stock Products: If an item isn’t available in our warehouse, we will drop ship directly from the manufacturer whenever possible.

  • Lead Times: Shipping times for out-of-stock or special-order items may vary and can take up to several days depending on manufacturer availability.

Our goal is to keep your pool running smoothly with the fastest delivery possible.

Description

Hayward H Series Bypass Valve Kit HAXBPK1932 For Ed1 Ed2 Heaters

Intro

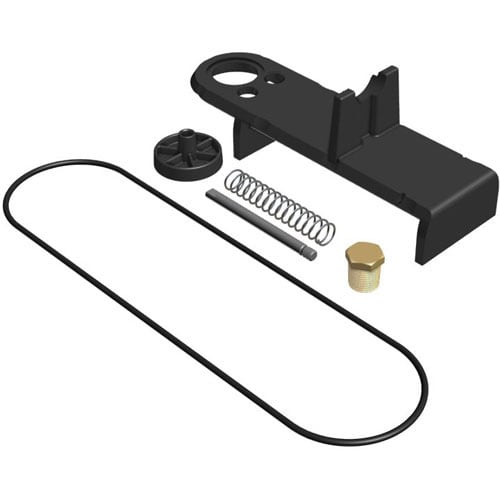

The Hayward H Series Bypass Valve Kit HAXBPK1932 is a complete replacement solution for Hayward H Series pool heaters (Ed1, Ed2) manufactured after October 28, 2000. It ensures reliable bypass operation, preserving thermostat control and overall heater efficiency without extended downtime. This kit pairs a black plastic bypass baffle and end cap with a stainless steel bypass shaft and plug, a bypass spring, and the HAXHOR1930 header O-ring, all designed to match Hayward’s engineering standards for a precise fit and durable seal. The parts are clearly identified to streamline installation and long-lasting performance, with the bottom molded marking 0101421101 for easy reference.

List of Features

  • Comprehensive kit for post-2000 Ed1/Ed2 heaters: Includes all components needed for a proper bypass, eliminating guesswork and mismatched parts.
  • Durable materials: Black plastic baffle and end cap paired with a stainless steel bypass shaft and plug, plus a robust bypass spring for lasting operation.
  • Precise bypass geometry: Baffle length 10", width 2-7/8", height 3-3/8" with a rounded end, plus a 1-3/8" thermostat hole and two 5/8" holes for accurate flow control.
  • Leak-proof header seal: Includes the HAXHOR1930 header O-ring to ensure a reliable, tight connection to the heater.
  • Clear compatibility note: Specifically designed for Ed1/Ed2 Hayward H Series heaters manufactured after 10-28-2000; older units use brass fittings and shorter baffles with fewer holes.
  • Identifiable by design: Bottom markings include 0101421101 for quick verification during service.

Final Thoughts

Designed by Hayward for dependable bypass control, this kit delivers a precise fit, durable construction, and straightforward installation. It helps maintain thermostat accuracy, minimizes downtime, and keeps your H Series heater running efficiently. Add the Hayward HAXBPK1932 to your cart today and restore reliable performance to your pool heating system.
