Hayward Bypass Valve Kit | HAXBPK1931

HaywardSKU: HPPHAXBPK1931
Duckies Price:
$114.08 USD

Shipping calculated at checkout

Stock:
In Stock • 7 Available
✓ Ships Within 24 Hours

Shipping Information

At Duckies Pool Supply, we work hard to get your order to you as quickly as possible:

  • In Stock in Store: Ships within 24 hours of your order.
  • In Stock in Warehouse: Ships within 24 hours from the warehouse closest to you whenever possible.
  • Out-of-Stock Products: If an item is not currently available in our inventory, we will drop ship it directly from the manufacturer whenever possible.
  • Lead Times: Shipping times for out-of-stock or special-order products may vary and can take several additional business days, depending on manufacturer availability.

Our goal is to keep your pool running smoothly by getting your products to you as quickly as possible.

Description

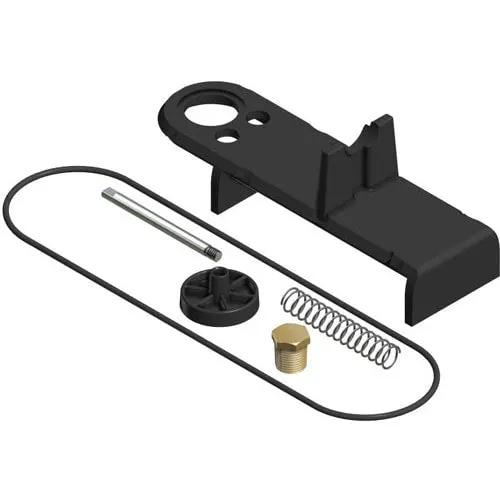

This Is The Bypass Kit Used In The Hayward H Series, Heaters Made Before 10-28-2000 Includes: Black Plastic Baffle, Round Brass Bypass End, Brass Bypass Shaft And Plug, Bypass Spring, And The Haxhor1930 Header O-Ring Material: Baffle And End: Black Plastic Bypass: Brass The Bypass Baffle Is Basically Rectangular With A Rounded End The Rounded End Has A Single 1-1/2" Diameter Hole For The Flow Control Thermostat There Is A 1/4" Diameter Hole Next To This Hole Length: 9" Width: 2-13/16 Total Height: 3-1/2 Markings: "0100973001" Is Molded Into The Bottom Special Note - The Bypass Kit For Later Heaters Uses Stainless Steel Fittings And The Baffle Is 10" Long And Has 3 Holes Total
