Description

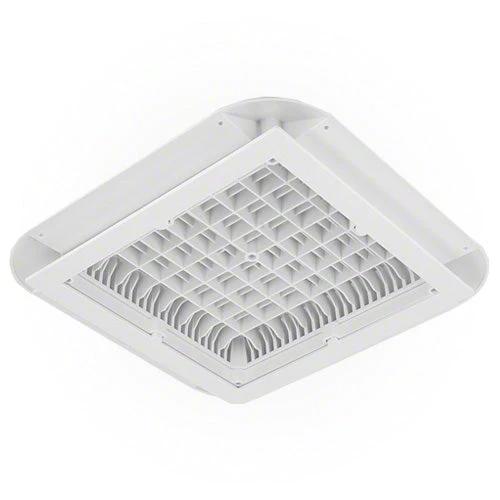

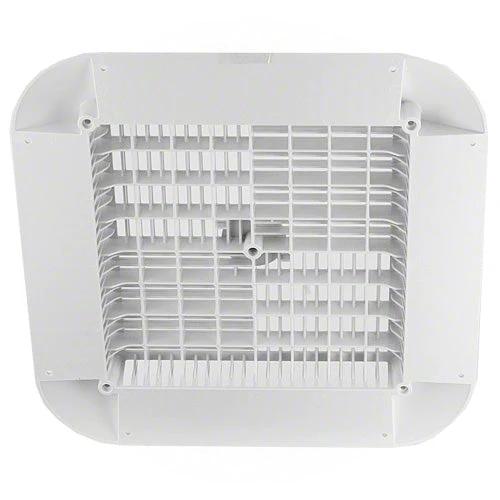

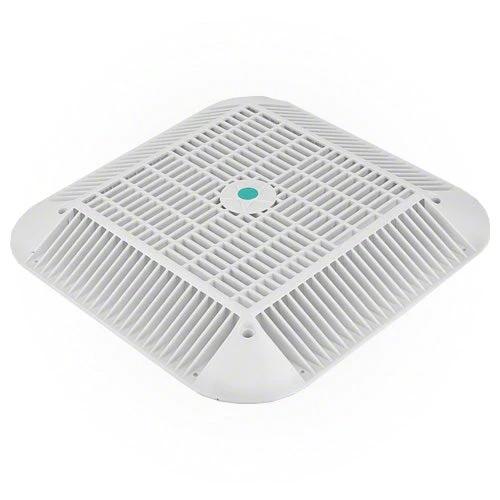

AquaStar Square Retrofit Suction Outlet Cover
The suction/main drain cover outlet 16" squared and is designed to retrofit most 12" existing suction outlet sumps/frames. The frame safely and easily retrofits most brands with an existing 12" frame with epoxy or screws or both. The cover will anchor into the in-molded brass inserts in the frame with four fine thread machine screws.
You can also use the cover to retrofit over all existing sumps/frames up to 15" by anchoring directly into the pool finish (plaster, tile, fiberglass, etc.) by using the optional brass anchor kit that includes four brass anchors (Part # BIK4 - Sold Separately).
Square Retrofit Suction Outlet Cover Features:
The suction/main drain cover outlet 16" squared and is designed to retrofit most 12" existing suction outlet sumps/frames. The frame safely and easily retrofits most brands with an existing 12" frame with epoxy or screws or both. The cover will anchor into the in-molded brass inserts in the frame with four fine thread machine screws.
You can also use the cover to retrofit over all existing sumps/frames up to 15" by anchoring directly into the pool finish (plaster, tile, fiberglass, etc.) by using the optional brass anchor kit that includes four brass anchors (Part # BIK4 - Sold Separately).
Square Retrofit Suction Outlet Cover Features:
- Easily and safely retrofits to fits to most brands with 12" frame
- Made from UV-resistant engineered polymer

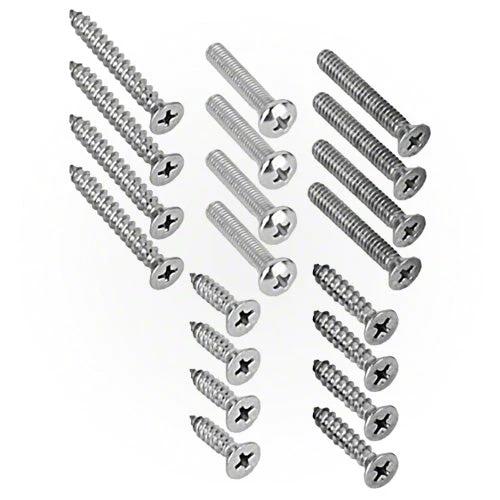

- Includes cover, sump, screws and bushing kit.
- #316 Stainless steel screws
- Product meets or exceed ANSI/APSP 16-2011 and NSF/ANSI 50-2009a national standards
- Compliant with the Virginia Graeme-Baker Pool and Spa Safety Act
- Replace every five years from the date of purchase
- Color: White
- Floor: 460 gallons per minute at 1.46 fps
- Wall: 445 gallons per minute at 1.4 fps
- Floor/wall: 323.1 gallons per minute at 1.5 fps
- Floor/Wall: 215.4 gallons per minute ate 1.0 fps
- 101 square inch opening
