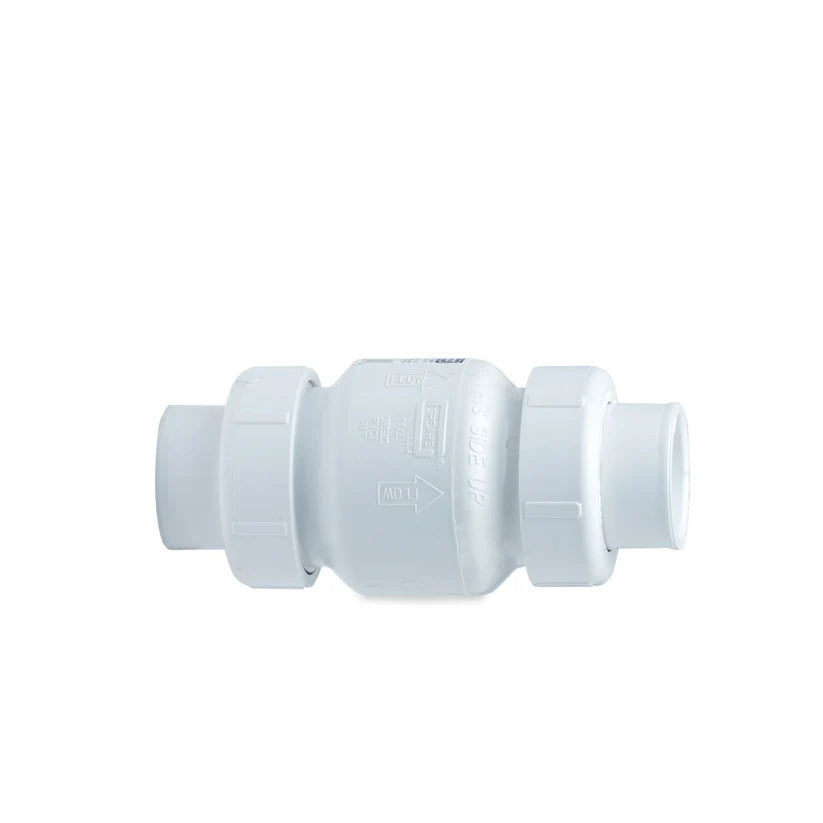

1.5 Inch White PVC True Union Utility Swing Check Valve Socket Ends by Spears
Roll over image to zoom in Click on image to zoom
1.5 Inch White PVC True Union Utility Swing Check Valve Socket Ends by Spears

1.5 Inch White PVC True Union Utility Swing Check Valve Socket Ends

SpearsSKU: S1720-15
Default Title: Default Title
Duckies Price:
$46.73 USD

Shipping calculated at checkout

Stock:
In Stock in Warehouse
✓ Ships Within 24 Hours

Shipping Information

At Duckies Pool Supply, we work hard to get your order to you as quickly as possible:

  • In Stock in Store: Ships within 24 hours of your order.
  • In Stock in Warehouse: Ships within 24 hours from the warehouse closest to you whenever possible.
  • Out-of-Stock Products: If an item is not currently available in our inventory, we will drop ship it directly from the manufacturer whenever possible.
  • Lead Times: Shipping times for out-of-stock or special-order products may vary and can take several additional business days, depending on manufacturer availability.

Our goal is to keep your pool running smoothly by getting your products to you as quickly as possible.

Description

1.5 Inch White PVC True Union Swing Check Valve Socket Ends

This 1.5 inch white PVC True Union Swing Check Valve provides reliable backflow prevention in standard PVC piping, with socket-end connections for straightforward installation. It is designed for horizontal installations and may be installed in an up-flow vertical position as needed. To operate correctly, align the valve so the FLOW arrow points in the direction of flow and avoid installing it upside down.

Key specifications

  • Size: 1.5 inch nominal
  • Material: white PVC
  • Connection type: socket ends
  • Valve type: True Union Swing Check Valve
  • Installation orientation: horizontal; up-flow vertical position allowed
  • Flow direction Requirement: arrow must point with flow; not installed upside down
  • Pressure rating (water at 73°F / 23°C): Full flow (open) 150 psi; Back pressure (closed) 75 psi
  • Maximum service temperature: 140°F (60°C); temperature/pressure deratings apply
